ImageCacheViewer¶
What ImageCacheViewer does¶
Guided SUSA tool journey
ImageCacheViewer supports browser forensics. In this guide, you will use it to recover a cached image and record its source URL and cache context. The procedure and screenshots provide the practical reference; the surrounding context explains what to record and how to judge the result.
Tool guide at a glance¶
Recover a cached image and record its source URL and cache context.
A copied training browser profile or supplied browser artefact set.
A browser observation linked to profile, source artefact, time context, and corroborating evidence.
Evidence and safety
Use copied profiles. Do not open recovered links or downloads on the analyst workstation. Record the input identifier, tool version, relevant commands or settings, time and time zone, output location, and any errors or limitations as you work.
Choose your journey¶
01Understand the evidenceLearn the browser forensics concepts and limitations.Complete when you can explain what the evidence can and cannot show.Beginner · No tool required · 15–25 min 02Follow the ImageCacheViewer guideWork through the commands, screenshots, and instructional sequence below.Complete when the documented workflow produces its expected output.Guided · SUSA workstation · Time varies 03Interactive labPractise the tool workflow in a safe browser simulation.Complete when the guided result is supported by the case evidence.Beginner · Browser only · 10–20 min 04Full LabInvestigate an authorised training scenario with fewer prompts and preserve a reviewable result.Complete when another analyst can reproduce and verify the outcome.Intermediate · Isolated lab · 45–90 min
How the labs complement this guide
The Interactive Lab is a safe browser simulation for practising the workflow and validation logic. The Full Lab is an independent exercise for an isolated, authorised environment. Confirm the installed tool version and expected output before relying on either exercise in a real case.
Accessing ImageCacheViewer in SUSA¶

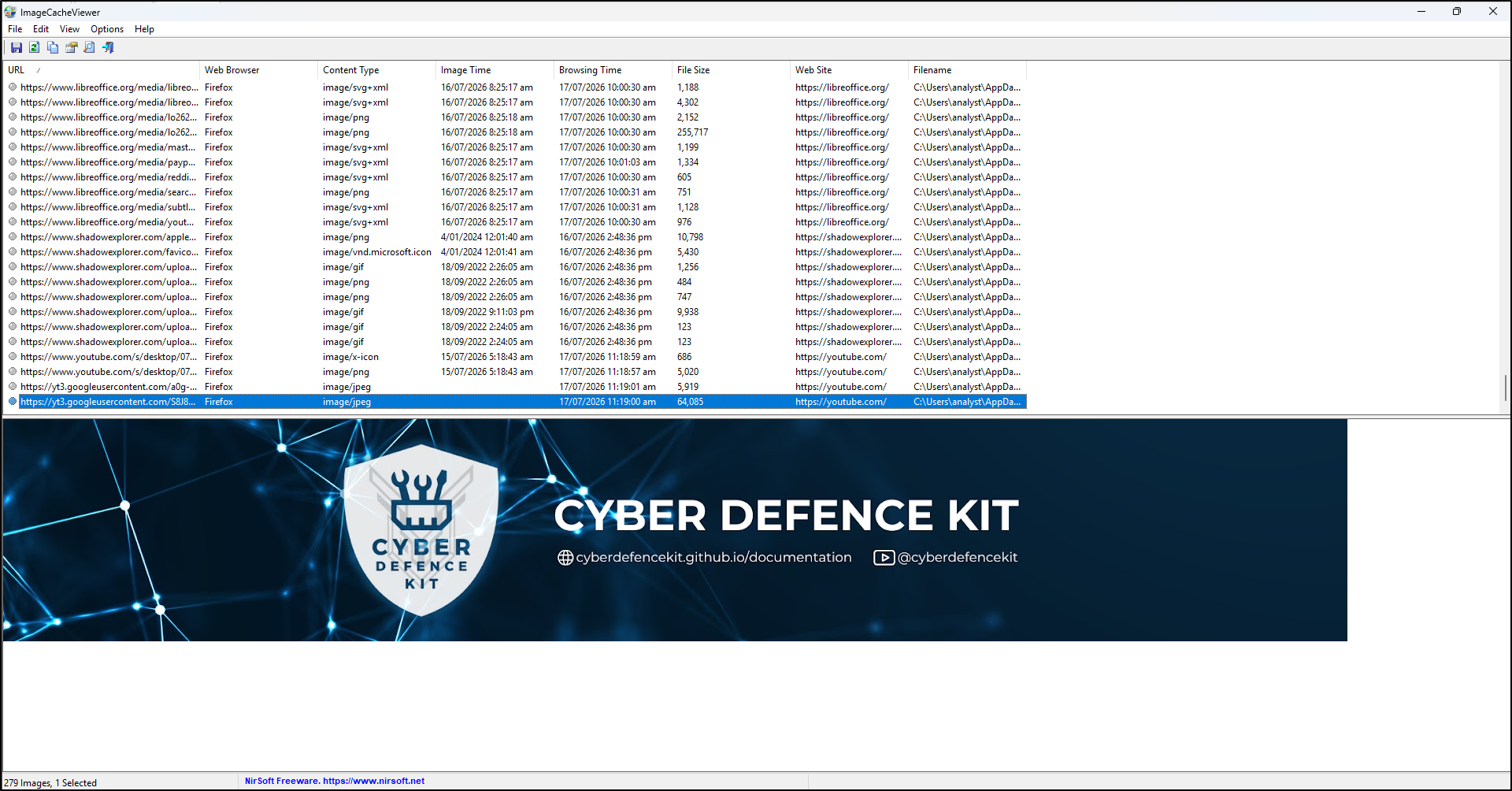

ImageCacheViewer scans supported browser caches and lists cached image objects.
Use a copied browser profile where possible and record the source browser, profile and time-zone context. A cached image can support that content was retrieved, but it does not by itself prove which user viewed it, why it was loaded or that its parent page was deliberately visited.

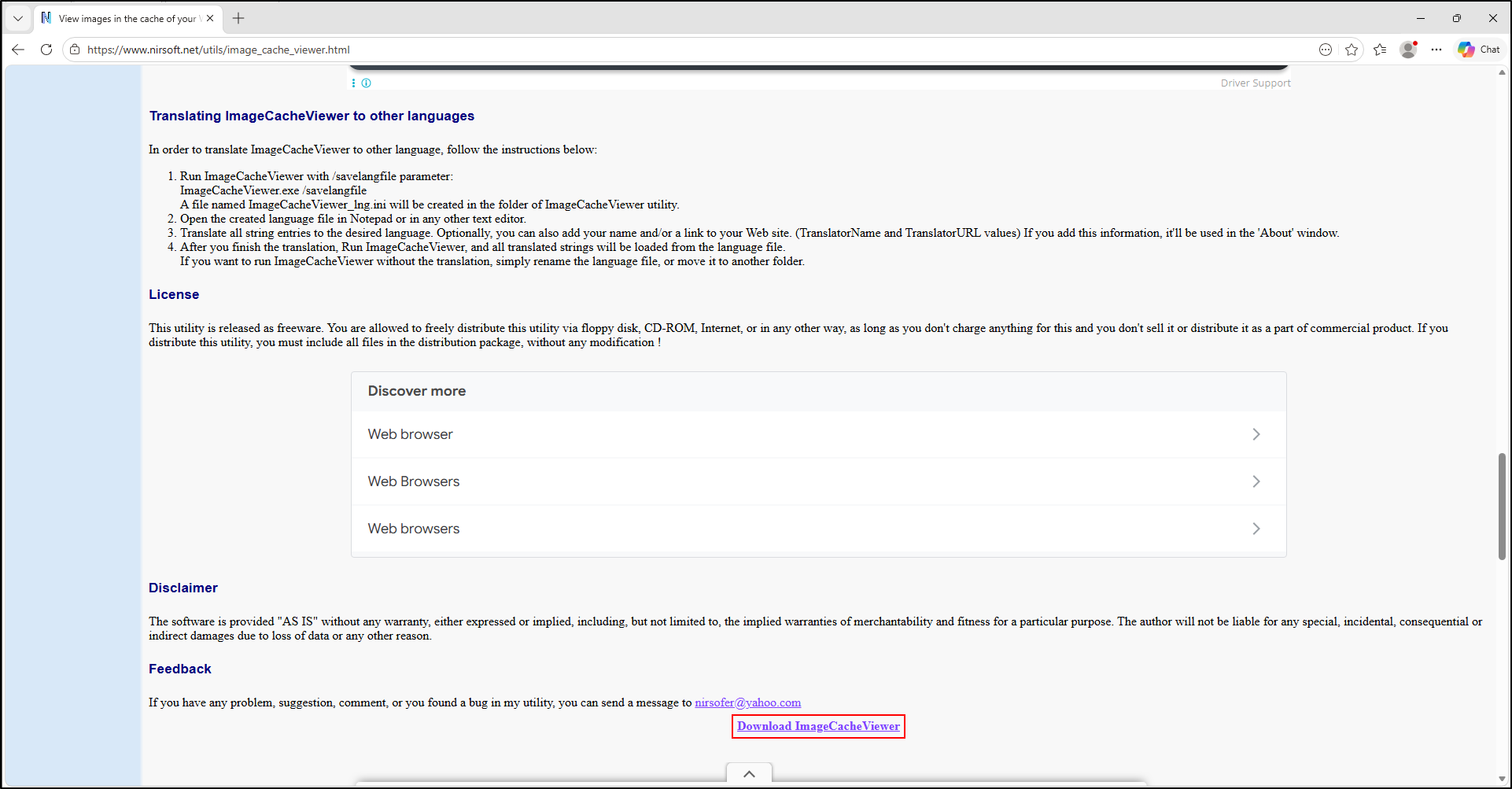

Download ImageCacheViewer.
Move the downloaded ZIP archive to C:\Tools and extract the contents to C:\Tools\ImageCacheViewer. Open ImageCacheViewer and confirm that it starts without an error.
